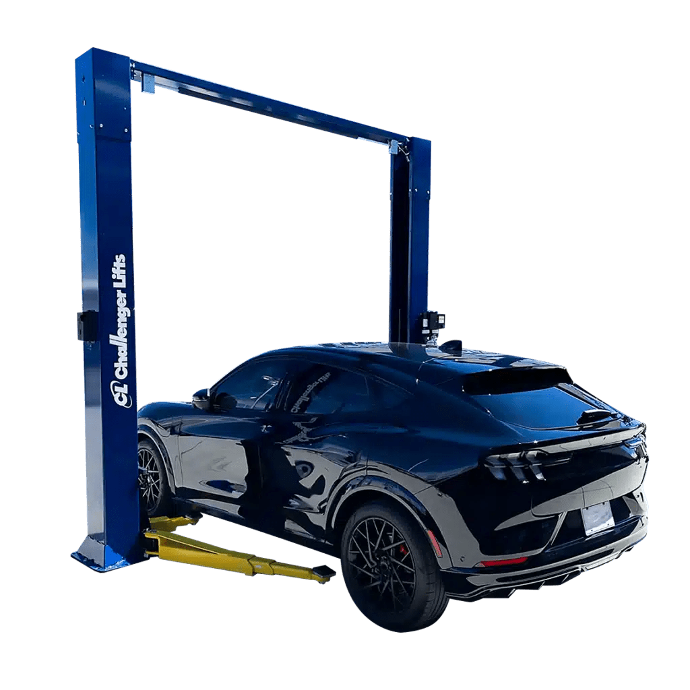

Challenger CL10AV3
10,000 lb. Versymmetric® 2-Post Lift
Challenger’s CL10AV3 is a highly configurable 10,000 lb. professional service lift designed to handle cars, SUVs, light trucks and many EVs within the same service bay.
Three installation widths, multiple height configurations and 3-stage front and rear arms make the CL10AV3 one of the most flexible 10K lifts in the Challenger lineup.
Best For: Dealerships, high-volume repair shops and mixed-vehicle service bays where flexibility and productivity matter.
|
Lifting Capacity |
10,000lbs |
|
Lifting Configuration |
Versymmetric (Symmetric & Asymmetric) |
| Arms | 3-Stage Front / 3-Stage Rear |
|
Rise Height |
74.125" |
|
Column Height |
134" / 140" |
|
Overall Height (Cylinder Extended) |
143" |
|
Adjustable Width Overall |
138.5" / 143" |
|
Drive-Thru Clearance |
100" / 104.5" |
|
Floor to Overhead Switch |
134.5" |
|
Front Arm Reach (Min./Max.) |
20" / 42" |
|
Rear Arm Reach (Min./Mas.) |
37.625" / 60" |
|
Screw Pad Height |
3.875" / 6.125" |
|
Inside Columns |
110" / 114.5" |
|
Motor/Voltage |
2HP, 208V-230V, 60Hz, 1Ph |
|
Speed of Rise |
38s |
|
Max. Load per Arm |
2,500lb |
|
Ceiling Height Required |
12' |
| ALI Certified | Yes |
| Colors Available | Red, Blue, Black |
FEATURES & BENEFITS
- Exclusive Versymmetric® offset arms provide directSPOT™ to vehicle lift points and safely lifts both symmetrically and asymmetrically within the same service bay
- Oversized 5” diameter pulley and heavy duty 5/16” cable reduces stress on equalization system and increases cable life
- 48” elongated carriage design increases lift life
- Standard model fits 12’ ceiling height. Additional 2 foot or 3 foot extensions available
- Padded overhead shut off system prevents vehicle damage
- Premium double telescoping screw pads adjust to multiple heights minimizing the need for adapters
- Fully gusseted base plate design increases column rigidity
- Pulley-less jacketed single-point lock release system makes for smoother, easier operation and longer life
- Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage
- Plated arm restraints and arm pins inhibit rust and provide long-lasting durability
- Premium powder coat finish provides long-lasting durability
- Double telescoping screw pads adjust from 3.875” to 6.125,” reducing the need for adapters
Download the CL10V3 Series Product Brochure
Download the CL10V3 Spec Sheet
Download the CL10V3 Manual
Optional Accessories
|
B2280PR
|
New wide frame footpad
|
|
CLXP9
|
Low-profile Expressive Service Pad
|
|
10313
|
Pair of 6" stack adapter extensions
|
|
10315
|
Stack adapter kit - includes (4) 3" stack extensions, (2) 6" stack extensions, and (2) Organizer racks
|
| 10316 | Organizer rack for stack adapter extensions |
| B2260 | Round rubber-style double screw foot pad assembly |
| B10264A | Air/electric workstation with FLR |
| B99700 | Tire tool manager workstation with FLR |
| TR-07 | Turf Rail Quick Change Attachment |
| 3PH217 | Power Unit Upgrade to 3-Phase - 208V |
| 3PH239 | Power Unit Upgrade to 3-Phase - 230V |
| 3PH469 | Power Unit Upgrade to 3-Phase - 460V |
