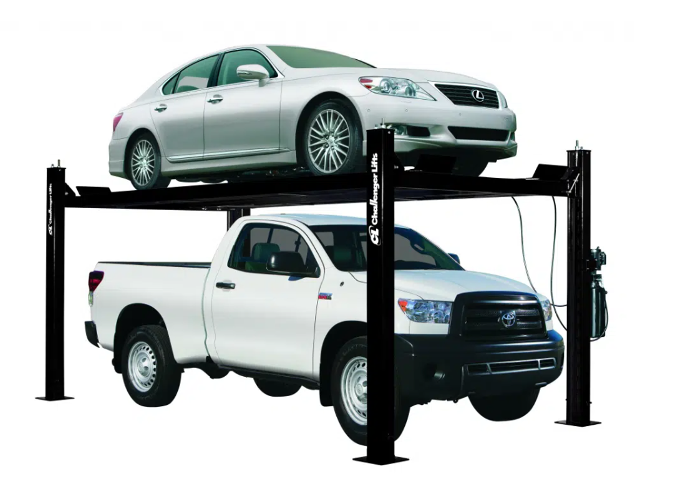

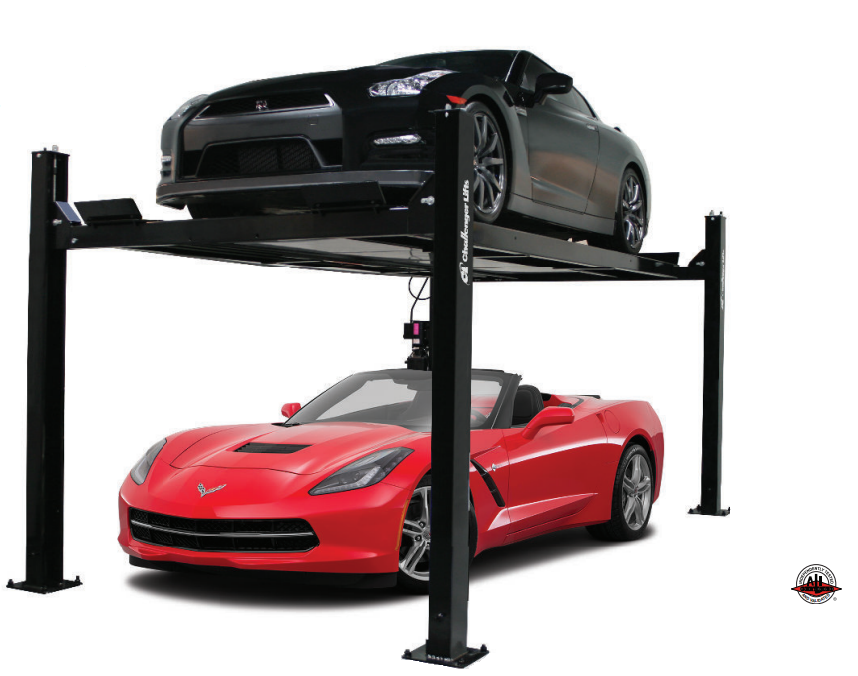

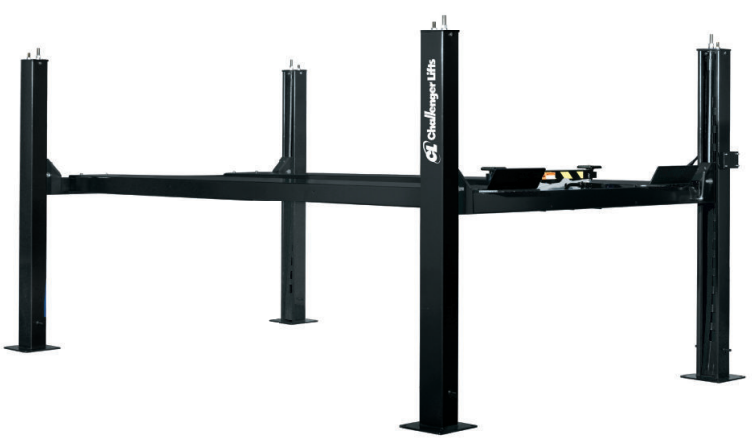

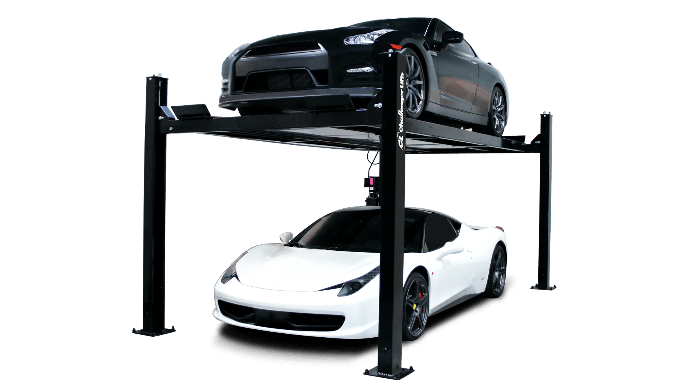

Challenger Home Storage 4-Post Lifts

Challenger’s Home Storage line of 4-Post lifts are the perfect solution for adding an additional parking space to your home garage or storage area. The ability to run these lifts with 110V and the fact they the do not need to be anchored into your concrete make them ideal for home installations. These lifts can also be used for light-duty service applications when performing maintenance on your personal vehicle or working on your weekend project car. Additional options available include extended ramps for lowered vehicles, rolling jacks to lift the vehicle off the runways to give you access to brakes/wheel work, caster set to be able to move the lift in your garage, and 220V optional power unit upgrade to decrease rise time. The four different size configurations and two different weight capacities gives you the flexibility to fit them in almost any garage space.

Our recommendation is always to choose the tallest lift that will fit in your garage space. Keep in mind that while the 7,000lb capacity and relatively low rise height of the CL4P7 may work today, but if you upgrade to a taller vehicle down the road the limited rise height may prevent you from utilizing your lift exactly as you’d like.

Absolute minimum recommended ceiling height for storing two vehicles is the height of both vehicles plus 12″

CL4P7

Compact

Challenger's smallest and most cost effective Home Storage Lift is the CL4P7. This lift is geared towards tighter applications with narrow width or low ceiling height available. See below for specific dimensions.

  • Lifting Capacity: 7,000lb
  • Overall Width: 100.5" (8' 4.5")
  • Overall Length (with removable ramps): 195.5" (16' 3.5")
  • Overall Length (without removable ramps): 165" (13' 9")
  • Overall Height: 79.5" (6' 7.5")
  • Max Height Under Lift: 63" (5' 3")
  • 110V or 220V/1PH
  • ALI Certified

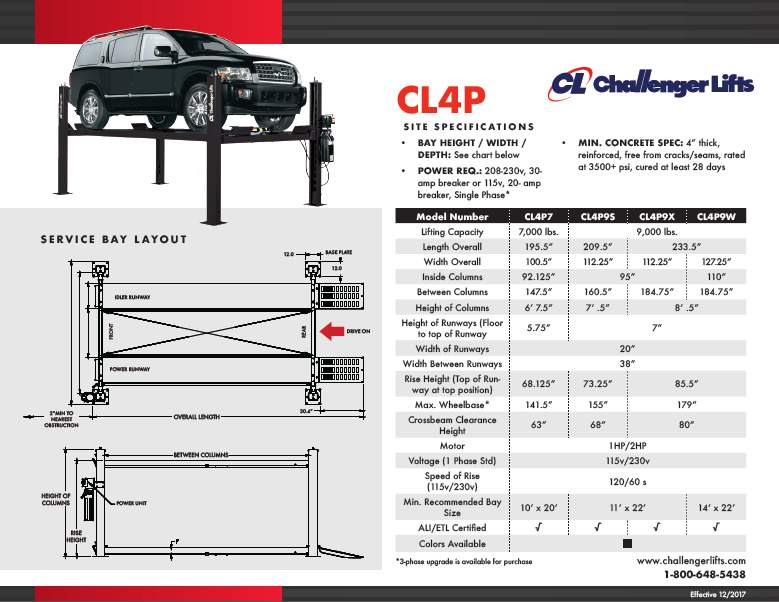

Click the image to download a detailed CL4P7 layout drawing

CL4P9S

Standard

The CL4P9S is slightly bigger than the CL4P7 with an added 2,000lb lifting capacity. Upgrading to the CL4P9S gives you an additional 5" of rise height, an extra 12" of width clearance, and an additional 13" of length.

  • Lifting Capacity: 9,000lb
  • Overall Width: 112.25" (9' 4.25")
  • Overall Length (with removable ramps): 209.5" (17' 5.5")
  • Overall Length (without removable ramps): 179" (14' 11")
  • Overall Height: 84.5" (7' 0.5")
  • Max Height Under Lift: 68" (5' 8")
  • 110V or 220V/1PH
  • ALI Certified

 Click the image to download a detailed CL4P9S layout drawing




CL4P9X

Extended Length/Height

The CL4P9X offers the same width and length of the CL4P9S with an additional 12" of rise height. This option is perfect for storing larger Trucks/SUV's underneath or to have ample headroom clearance when working on your weekend project.

  • Lifting Capacity: 9,000lb
  • Overall Width: 112.25" (9' 4.25")
  • Overall Length (with removable ramps): 233.5" (19' 5.5")
  • Overall Length (without removable ramps): 203" (16' 11")
  • Overall Height: 96.5" (8' 0.5")
  • Max Height Under Lift: 80" (6' 8")
  • 110V or 220V/1PH
  • ALI Certified


Click the image to download a detailed CL4P9X layout drawing

CL4P9W

Extended Length/Height/Width

The CL4P9W is Challenger's tallest and widest Home Storage Lift that is the perfect option if your garage/storage space allows for it. The additional 15" of overall width gives you plenty of space available around the vehicle while doing work, and also gives you plenty of clearance between the vehicle and columns when pulling on and off the lift.

  • Lifting Capacity: 9,000lb
  • Overall Width: 127.5" (10' 7.5")
  • Overall Length (with removable ramps): 233.5" (19' 5.5")
  • Overall Length (without removable ramps): 203" (16' 11")
  • Overall Height: 96.5" (8' 0.5")
  • Max Height Under Lift: 80" (6' 8")
  • 110V or 220V/1PH
  • ALI Certified


Click the image to download a detailed CL4P9W layout drawing

110V Operation

110V Operation makes for an easy install as electrical work is typically not required.


Optional Casters Available

Optional Caster Set allows these lifts to easily be relocated within the garage as your plans change.

Anchoring not required

The design of these lifts allow them to be installed directly on your garage floor without the need to anchor them to the floor. This is ideal if you ever wanted to move the lift in the future and/or if in-floor heating has been installed.

Manual Lock Operation

Single point manual lock release is a simpler, more reliable option vs. pneumatic lock release.
