  3. Challenger CL10AV3 10,000lb 2-Post Lift
Standard Pricelist

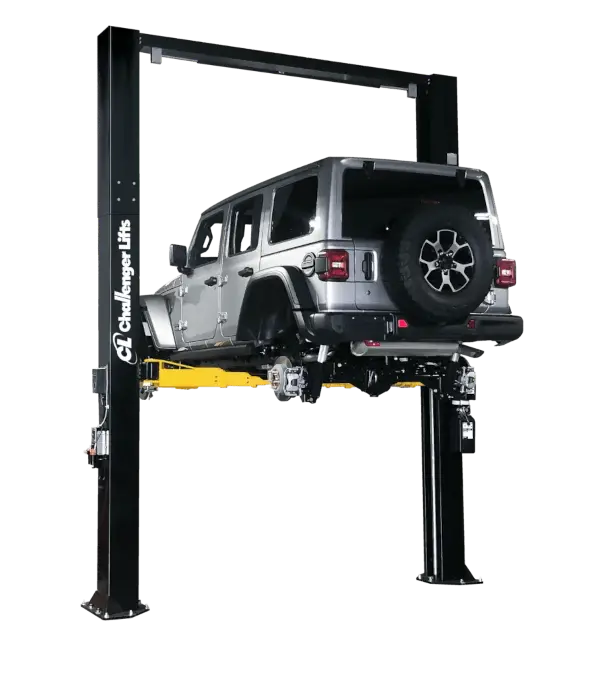

Challenger CL10AV3 10,000lb 2-Post Lift

Challenger CL10AV3 10,000lb 2-Post Lift

https://www.nesequipment.com/web/image/product.template/90934/image_1920?unique=ee235e3
(0 review)
The Challenger CL10AV3 is a highly configurable 10,000 lb. Versymmetric® 2-post lift designed for cars, SUVs, light trucks and mixed-vehicle service bays. Three installation widths, multiple height configurations and 3-stage front and rear arms make it one of Challenger’s most flexible 10K lifts. Best For: Dealerships, high-volume repair shops and mixed-vehicle service bays where flexibility and productivity matter.

$ 7,495.00 7495.0 USD $ 7,495.00

Not Available For Sale

  • Height Extension
  • Color

This combination does not exist.

Contact Us

Terms and Conditions

Brand: Challenger Lifts
Brochure:
Name: Challenger CL10AV3 10,000lb 2-Post Lift

10,000lb

LIFT CAPACITY

138.5"–150.5"

OVERALL WIDTH

134" / 140"

STANDARD HEIGHT

14' × 24'

RECOMMENDED BAY


Why Choose the CL10AV3?

The CL10AV3 is designed for shops that need one lift to handle a broad mix of vehicles without sacrificing bay flexibility. Challenger’s Versymmetric® design allows vehicles to be positioned for both symmetric and asymmetric lifting. Three-stage front and rear arms provide broad lifting-point coverage, while three installation widths allow the lift to be configured around the available bay space and vehicle mix. Optional productivity features including Dual Pendant Controls and QuickCycle™ are available for higher-volume service environments.

Specification

CL10AV3

Capacity10,000 lb.
Overall Width138.5" / 144.5" / 150.5"
Width Between Columns110" / 116" / 122"
Drive-Through Clearance100" / 106" / 112"
Standard Column Height134" / 140"
Rise Height74⅛"
Front Arm Reach20"–42"
Rear Arm Reach37⅝"–60"
Minimum Pad Height3⅞"
Power208–230V, 1 Phase
Recommended Bay14' W × 24' D
Minimum Ceiling12'
ALI CertifiedYes

Planning a tight bay? The CL10AV3 can be installed at three different widths. NES can review your available space, vehicle mix and ceiling height before ordering to determine the best configuration.
