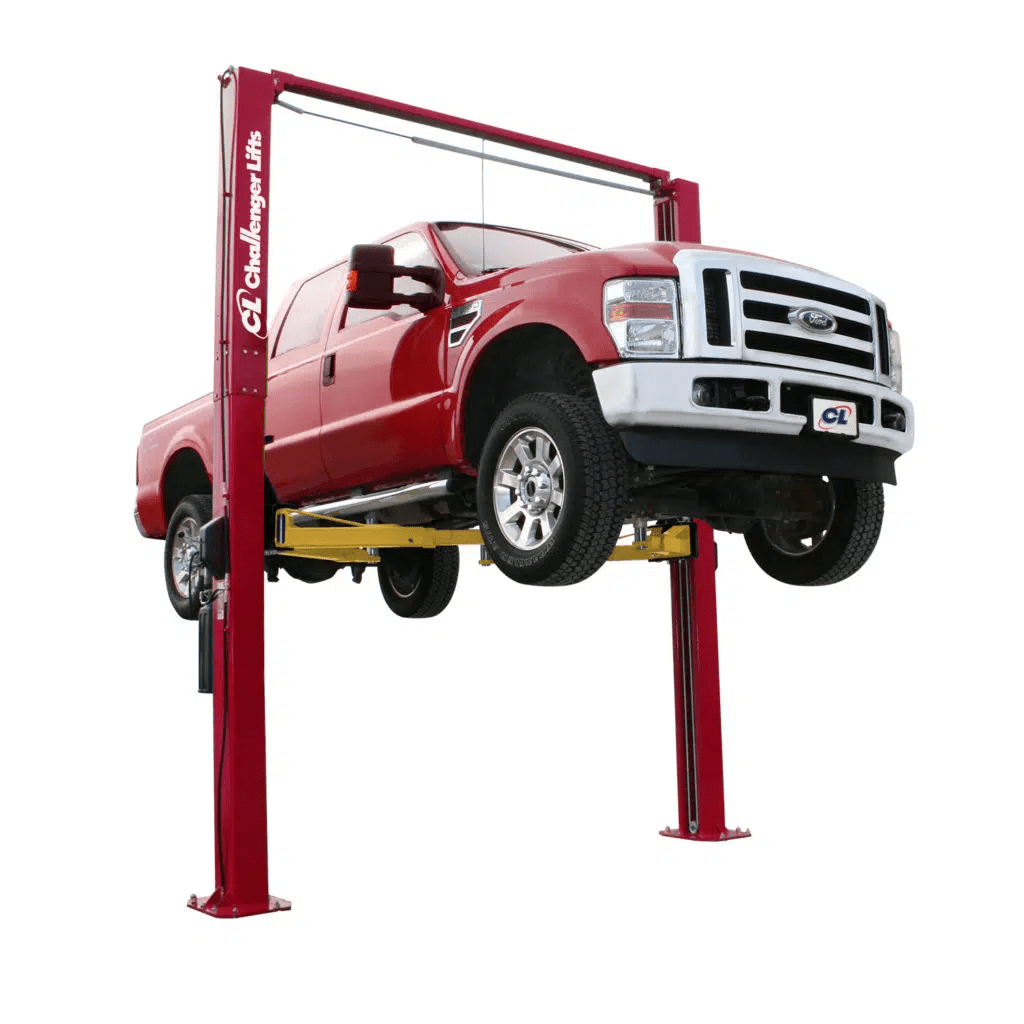

Challenger LE12 - 12,000lb 2 Post Lift - Economy Grade

Challenger’s LE12 is the perfect economic 2-post lift for servicing trucks and other vehicles up to 12,000 lbs. Heavy-duty 2-stage front and 2-stage rear arms offer symmetric lifting capability. Also, adjustable column height accommodates higher profile vehicles while providing ample servicing headroom. The LE12 comes standards with stack adapters. Accommodate higher profile vehicles with optional 2 foot column
extensions.

Brand: Challenger Lifts
Brochure:
Name: Challenger LE12 - 12,000lb 2 Post Lift - Economy Grade
Specifications: Lifting Capacity 12,000 lbs. Arms 2-stage front/2-stage rear Lifting Configuration Symmetric Rise Height 77.75” Overall Height 166”/175” 2’ Height Extension Available Yes Overall Width 139.75” Drive-Thru Clearance 103” Floor to Overhead Switch 159.5”/168.5” Minimum Arm Reach 35.75” Maximum Arm Reach 54.5” Screw Pad Height 5.25”-6.75” Inside Columns 115” Ceiling Height Required 167”/176” Motor / Voltage 2HP, 208v - 230v Speed of Rise 61 s ALI/ETL Certified Yes Colors Available Red, Blue
