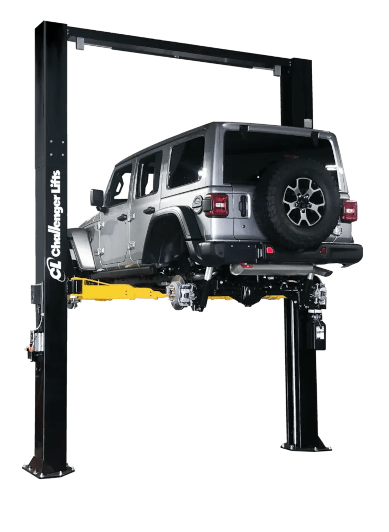

Commercial Grade Challenger CL12A
Challenger's 12,000 lbs. 2-Post now features the same width adjustability we developed for their 16K & 20K 2-Posts. Accommodate a wide range of standard cars, trucks, vans, and SUVs within the same service bay with +6″ & +12″ width adjustment (during installation) and +1′ & +2′ optional column extensions. Standard features also include 3-Stage front and rear arms and premium telescoping footpads.
|
Model Number
|
CL12A | CL12A-1 | CL12A-2 | CL12A-LC |
|
Lifting Capacity
|
12,000lbs |
12,000lbs |
12,000lbs |
12,000lbs |
| Lifting Configuration | Symmetric |
Symmetric |
Symmetric |
Symmetric |
| Arms | 3-Stage Front / 3-Stage Rear |
3-Stage Front / 3-Stage Rear |
3-Stage Front / 3-Stage Rear |
3-Stage Front / 3-Stage Rear |
| Rise Height | 84.75" |
84.75" |
84.75" |
84.75" |
| Overall Height | 13' 2" / 13' 8" |
14' 2" / 14' 8" | 15' 2" / 15' 8" | 11' 11" |
| Adjustable Width Overall | 142" / 148" / 154" |
142" / 148" / 154" |
142" / 148" / 154" |
142" / 148" / 154" |
| Drive-Thru Clearance | 103.5" / 109.5" / 115.5" |
103.5" / 109.5" / 115.5" |
103.5" / 109.5" / 115.5" |
103.5" / 109.5" / 115.5" |
| Floor to Overhead Switch | 12' 8" / 13' 2" | 13' 8" / 14' 2" | 14' 8" / 15' 2" | 11' 4.5" |
| Arm Reach (Min. / Max.) | 27.5" / 59" |
27.5" / 59" |
27.5" / 59" |
27.5" / 59" |
| Screw Pad Height | 5" - 6.625" |
5" - 6.625" |
5" - 6.625" |
5" - 6.625" |
| Inside Columns | 114.5" / 120.5" / 126.5" |
114.5" / 120.5" / 126.5" |
114.5" / 120.5" / 126.5" |
114.5" / 120.5" / 126.5" |
| Motor / Voltage | 2HP. 208v-230v, 60Hz, 1Ph |
2HP. 208v-230v, 60Hz, 1Ph |
2HP. 208v-230v, 60Hz, 1Ph |
2HP. 208v-230v, 60Hz, 1Ph |
| Speed of Rise | 63s | 63s |
63s |
63s |
| Ceiling Height Required | 14' 3" Minimum | 15' 3" Minimum | 16' 3" Minimum | 12' Minimum |
| Colors Available | Red, Blue, or Black |
Red, Blue, or Black |
Red, Blue, or Black |
Red, Blue, or Black |
| ALI Certified | Yes | Yes | Yes | Yes |
